Which you can then modify the STLs in Fusion 360 A video that is part of my.

#FUSION 360 IMPORT STL HOW TO#

Conversion aborted." In such case, use the tool Decimate in Autodesk ReMake or Edit > Reduce ( Shift+r) in Autodesk MeshMixer and simplify your model - decrease the number of surface facets - the maximum number is about 10-13 thousands faces. 6.1K views 2 years ago Fusion 360 Basics This video will quickly show you how to import STLs into Fusion360. This mesh contains a large number of facets. This tool may report the error message: "

Use the command MODIFY > Mesh > Mesh to BRep.

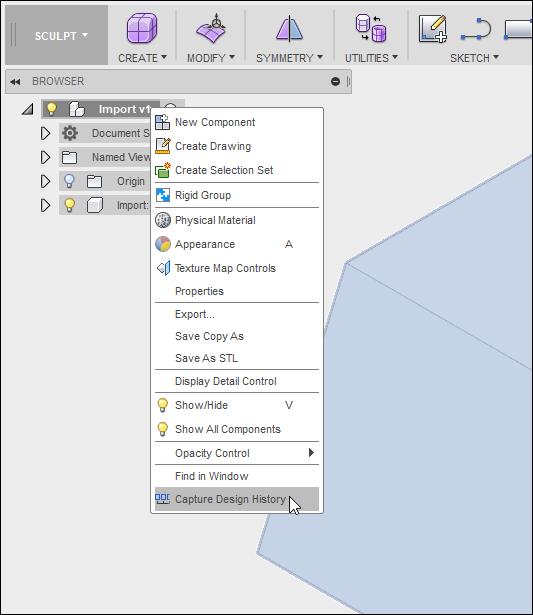

In Options (the gear icon, bottom-right), choose "Do not capture design history".

Start a new empty model (project) and invoke the command INSERT > Insert Mesh to import a STL or OBJ file.

Inserting components, STL, OBJ, DXF, and SVG Files into existing files: To insert an STL, OBJ, DXF, or, SVG file into an existing Fusion 360 file, use the insert command in the toolbar. Import STL in Fusion 360 In the Solid tab of the Design Workspace, select the Insert. Select Open in Desktop option to open the file in Fusion 360. Export Mesh: Turn the 3DMK file into an STL or OBJ file. for 3D printing and you need to perform a small or large correction of this model, you can use the CAD application Autodesk Fusion 360. Then, the STL file you selected will be imported into Fusion 360. Open Example Shapes: This has premade files to experiment with. If you have a STL file with a 3D model e.g. If printing on external FDM Printer save this file and import to other Slicer compatible with your printer.How to edit large STL files in Fusion 360? This will then Open Cura To continue, Open article (Printing On 5XM using CURA) We have chosen to use Cura for 3D printing

To avoid this we need to include “printing template” in our stl file, it is a rectangle that is larger than our dental mesh and is centered on the Fusion360 origin, this means that the centre of its bounding box in Fusion360 is on top of the origin so that when our model is imported into slicer the origin in slicer should match the origin in Fusion360. Stl files that are used by 3d printing slicers do not store location data, this means that when you import your stl file in to slicer, slicer should use the bounding box of the model to centre the object on the printers origin, which should result in misalignment of your model between printing and trimming processes. “Printing template” is square base that is normally invisible but is important for making sure that when imported in to slicer your model should have same origin as in Fusion360.

Follow this tutorial to learn the fastest way in Fusion 360 to import STL files. Select the component folder and make sure that both dental mesh and “printing template” are selected. Fusion 360: Import STL 3 Easy Steps by Lucas Carolo Updated Importing and converting STL files to CAD isn't always easy. Rename the mesh with appropriate date/Patient number/name so that you may revisit at a later date, then save a duplicate of this file. The Mesh should have imported into the correct component folder. Position the mesh model central of the pallet, the aim is to achieve even spacing between venting slots. Select Appropriate Dental mesh you will use. In Fusion360 make sure Component Folder is selected Getting low-quality Mesh triangles when Importing an.

#FUSION 360 IMPORT STL FOR FREE#

This Step by Step Guide will demonstrate how to import STL, OBJ and Dental scans into Fusion 360 and how to prepare your mesh for 3D Printing.įirst step is to import your stl file in to Fusion360. STL files in Autodesk Fusion 360 in 2021 How to edit Thingiverse files for free using Fusion 360.
